Артикул:
8202118348
Характеристики
Модель
—
HM-OPEN-XL-12-20-NPT
Цена по запросу
Отправить запрос
Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа
Уточняйте у менеджеров отдела продаж: актуальные цены, наличие, скидки и сроки поставки.
Самовывоз.
Доставка по Москве и МО.
Доставка по России.
Самовывоз.
Доставка по Москве и МО.
Доставка по России.
Описание

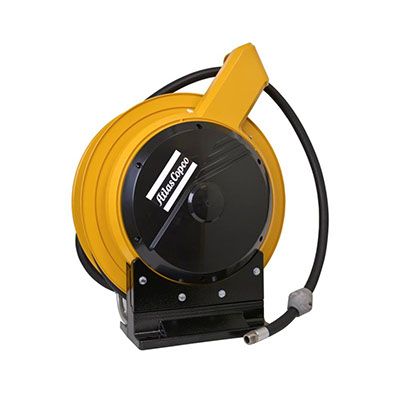

Hose Reel - HM-OPEN-XL-12-20-NPT
Артикул Атлас Копко:
8202 1183 48
8202118348
Atlas Copco HM Hose Reels are specially developed using our knowledge of power tools and with your demands in mind, to achieve maximum productivity and highest possible safety in the workplace. The wide range consist of different models and you can choose models in composite material, steel or die-cast aluminum, in open or closed versions, according to your needs. With HM Hose reels your tool benefits from a high air flow with minimum pressure drop.
Customs tariff is 84798997
Benefits
- Strong and durable
- Wide range to fit all Atlas Copco tools
- Safe workplace
- Long service life
Features
- High air flow capacity
- Hose end with steel spiral hose protector
- Easily adjustable spring tension
- Revolving hinge for flexible use
- Floor, wall or ceiling mounting
- Disengage the latch function easily
- Available with both BSP and NPT threads
Технические характеристики
- EU Directives: 2006/42/EC
- EU Standard: EN ISO 12100:2010
- Operating temperature: -10 - +60 °C
- Hose inside dia: 1/2 in
- Hose length: 20 m
- Weight: 27 kg
- Hose type: Rubber
- Economical air flow (0.2 bar ∆P, extended): 8 l/s
- Economical air flow (3 psi ∆P, extended): 17 cfm
- Max flow capacity (0.5 bar ∆P, extended): 14 l/s
- Max flow capacity (7 psi ∆P, extended): 30 cfm
- Max working pressure: 16 bar
